Description
Includes one v5.1 head and a 35 body with clip

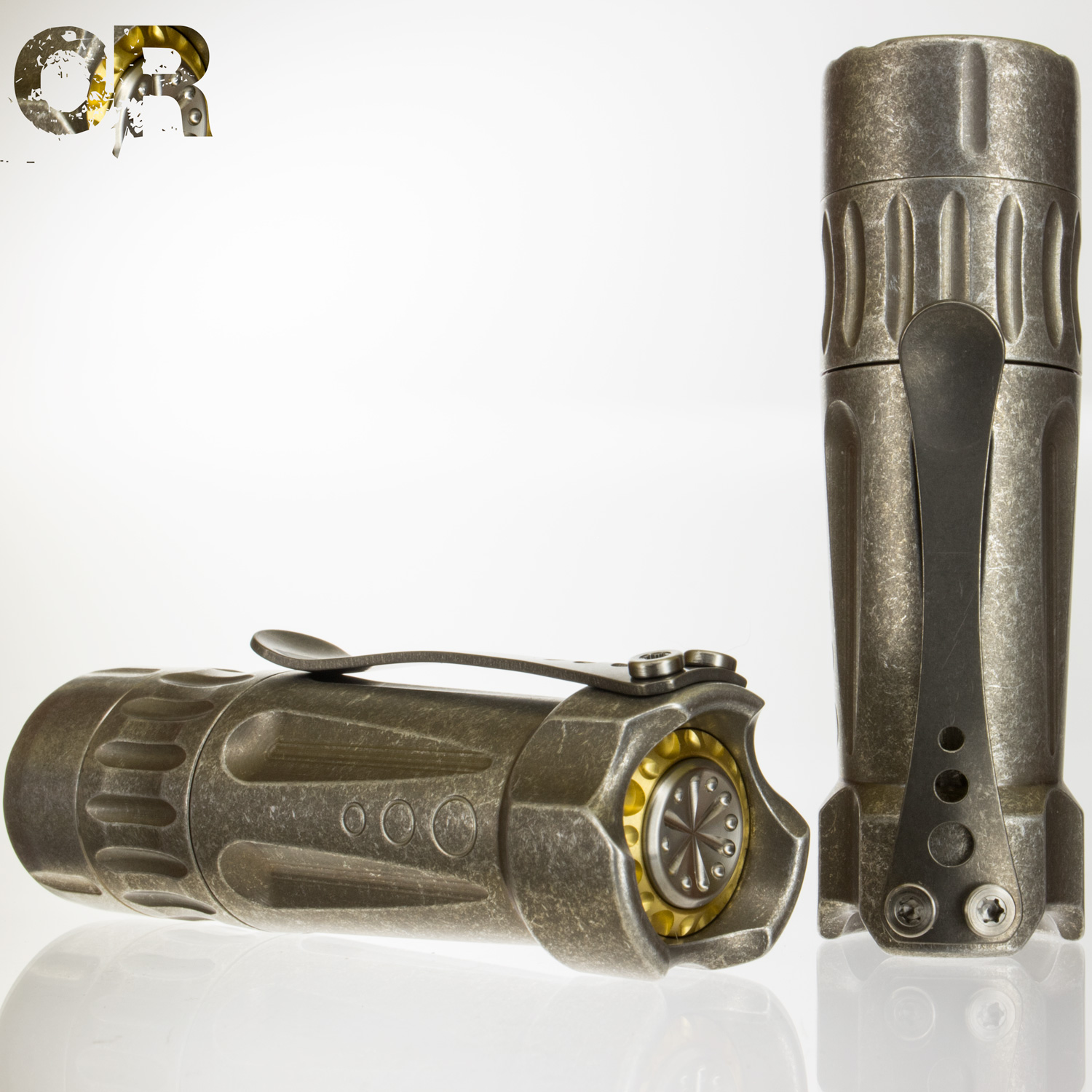

Control the Dark with the TorchLAB Bright Output Small Size (BOSS). More light, more strength, less size, less weight, retro-future styling. The ultimate in EDC convenience, comfort, and power. 7075 Aerospace Aluminum finished with a pewter like grain.
Choice of Secondary Color:
| + Colors | Red | Amber |
|---|---|---|
| Brightness | Good | Best |
| Protecting Dark Vision | Best | Good |
| Sleep Protection | Best | Best |
| Ideal Environment | Rural | Urban |
BOSS 7075 Weights and Measures (cren adds 7.5g)
BOSS Construction:
- Carved from solid 7075 Structural Aerospace Aluminum
- V5.1 Triple engine with thermally-enhanced metal core PCB
- Triad tail shape for both tail standing and easy thumb access
- Tapered body for superb grip and directional awareness
- Longitudinal channels and divots for rotational traction

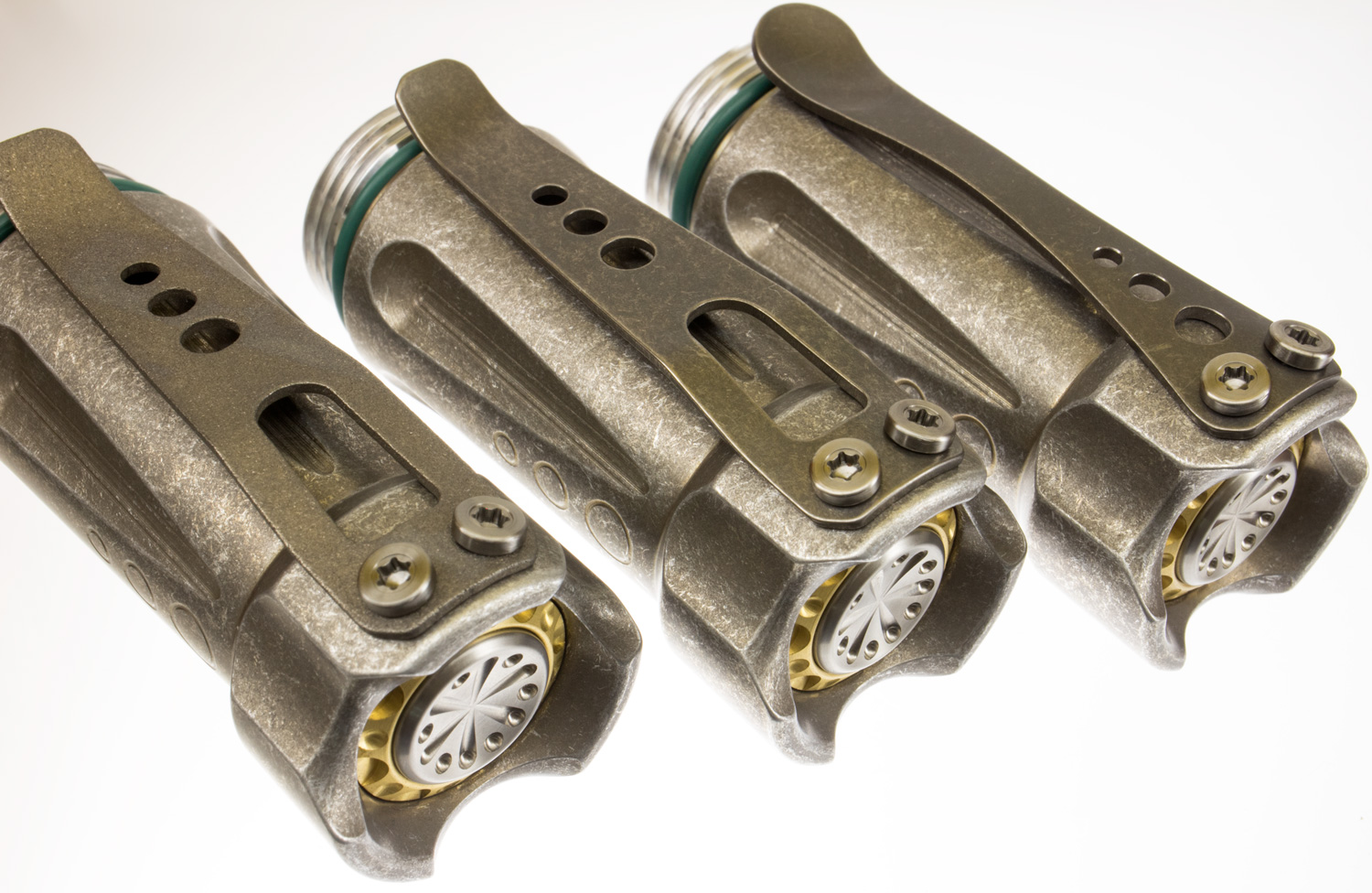

- Secure carry with extra thick titanium pocket clip
- Custom T10 extra thick titanium screws
- Solid brass electrical contact surfaces
- Acme threads with extra tall thread wall
- Hydrogenated nitrile butadiene rubber primary o-ring
- Shock isolated UCL glass lens
- Self-charging glow-in-the-dark flashlight locator ring
- Battery protection with double spring cell isolation
- Switch protecting battery bumpers for extreme shocks
- Shock and vibration tolerant materials and components
Electrical:
| Model: | BOSS 35 | BOSS 70 | BOSS 70 |
|---|---|---|---|
| Battery: | one 18350 | one 18650 | two 18350 |
| Runtime on High: | 25+ min typical | 75+ min typical | 25+ min typical |
| Max Power: | 17w | 17w | 30w |
| Max Battery Load: | 4.5a per cell (17w) | 4.5a per cell (17w) | 4.5a per cell (30w combined) |
| Operating Voltage: | 2.6 - 9v | ||
| Temperature Limits: | -40°C to 120°C (regulated temperature is less) | ||
| Regulation Type: | PWM-free boost constant current switching | ||
| Standbye Current: | 0.2 mA (typical, with MOFF & locator beacon active) | ||
| Recommended Batteries: | Unprotected single 18350 | paired 18350 | 18650 (leave protection enabled when using unprotected cells) | ||
| Metal components made in the USA | All components designed and formed with passion by: |
|---|---|
| Design & CAD | Tom |
| Engineering | Tom |
| Machining | Chris |
| Electronics | Serge |
| Logistics | Dan |
